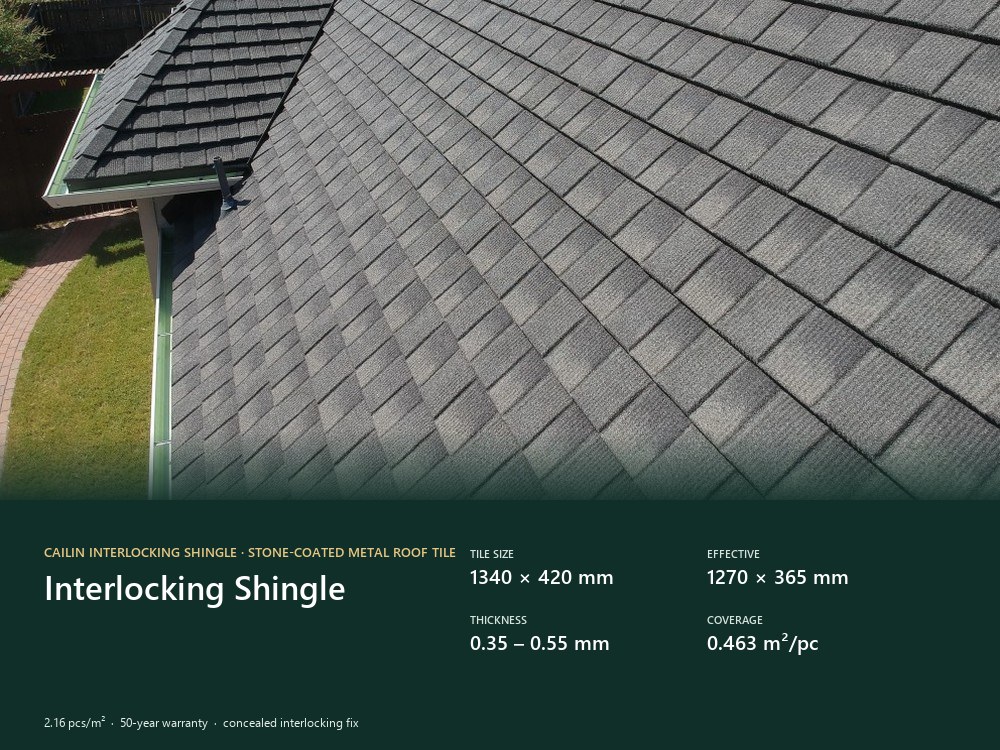

Cailin Interlocking Shingle
Interlocking shingle metal roof tile, sealed at every lap.
Colors:
Coffee Brown

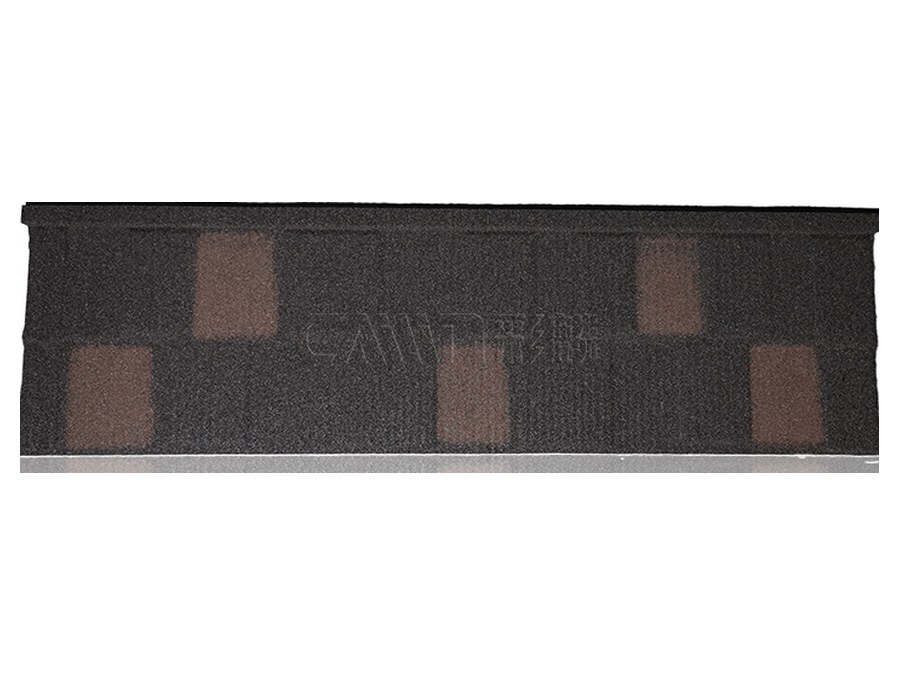

Brown Variegated

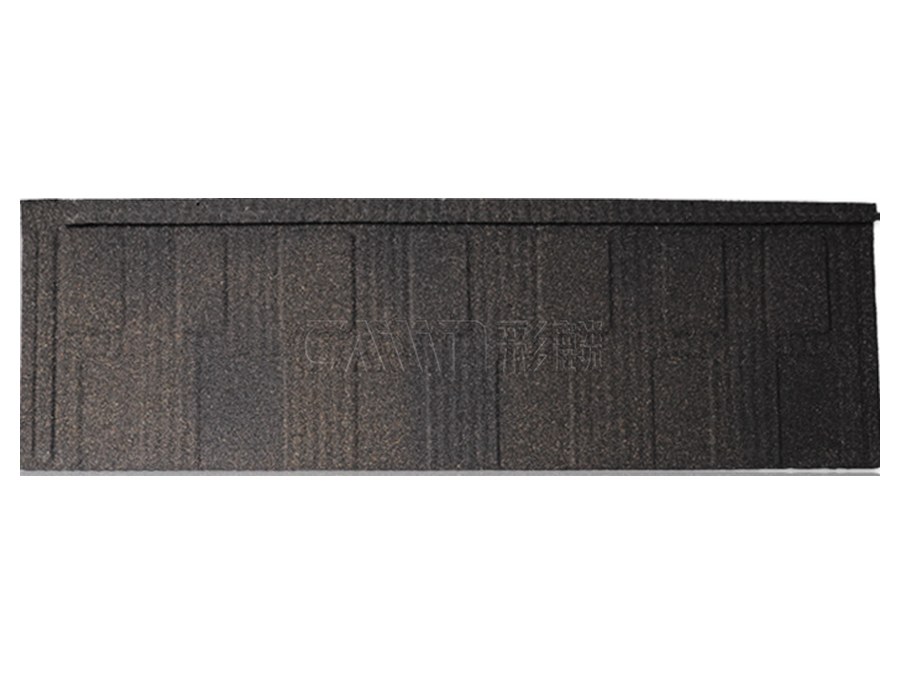

Charcoal
- Features & Benefits
- Installation Video
- Technical Documents
FIRE RESISTANT METAL ROOF TILES:
A steel core under a mineral stone surface will not feed a flame, so the interlocking shingle adds a passive fire barrier over villas, townhouses and commercial roofs.
WIND RESISTANT METAL ROOFING:
Each panel locks to its neighbour on both side laps and is held on a concealed clip line, so wind uplift is carried by the interlock rather than by an exposed screw head — the reason the system holds through hurricane-season gusts.
LIGHTWEIGHT METAL ROOF TILES:
A fraction of the weight of clay or concrete tile, the shingle system lowers structural load, and because it can lay over sound asphalt shingles a re-roof needs no tear-off and no second skip.
WATERPROOF METAL ROOF TILES:
Sealing is built into the profile: a raised interlocking step turns water sideways, the course below overlaps it by a full lap, and the fixing sits under the tile instead of through the face. Storm rain runs along the lap rather than into a hole.
CORROSION & UV RESISTANT:
Galvalume (Aluzinc) steel, primer coats and ceramic stone granules resist salt air, acid rain and UV, so the deep browns and charcoals keep their tone instead of chalking back to grey.
ENERGY EFFICIENT, LONG LIFESPAN:
The stone surface slows heat transfer into the roof space while the steel core holds its strength for decades — a low-maintenance shingle metal roof tile backed by a 50-year warranty.
FAST INTERLOCKING INSTALLATION:
Panels are laid like siding: the interlocking edge sets the course spacing, the tile clicks into the one below, and the fastener disappears under the next course, so laying time and call-backs both drop.

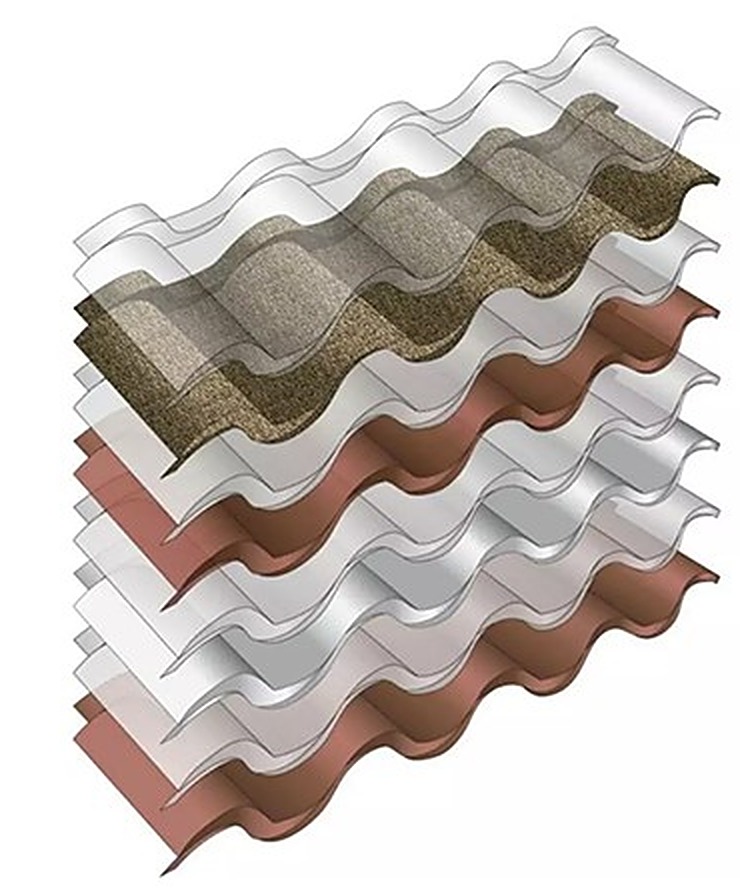

Stone Coated Metal Roof Panel Components
- Overglaze – semi-gloss finish; added protection
- Stone Granules – color; UV resistance; coverage
- Basecoat – adhesion; UV protection; color blended
- Acrylic Primer – priming system; enhances adhesion
- Aluminum-Zinc Alloy Coating – prevents corrosion; protection
- Steel – 0.33mm to 0.55mm thickness; load-bearing; flexible
- Aluminum-Zinc Alloy Coating – prevents corrosion; protection
- Acrylic Primer – priming system; enhances adhesion
In general, there are 3 main parts of raw material contents:
- ① Stone Chips ( Beautiful look, effective heat / UV resistant, noise reduction, anti-slip and etc features)
- ② Galvalume Steel Plate ( Eco-friendly and recyclable material, strong, light-weight, anti-corrosion, waterproof)
- ③ Acrylic Glue ( Premium sealing performance, strong adhesion, anti-algae)
You Can Learn More Professional Knowledge Here
Check the more detailed written installation guides, product manuals available for detailed technical specifications.
