Cailin Interlocking Shake Pro
Concealed-fix interlocking shake on stone-coated steel.
Colors:
Shake Pro Copper Brown

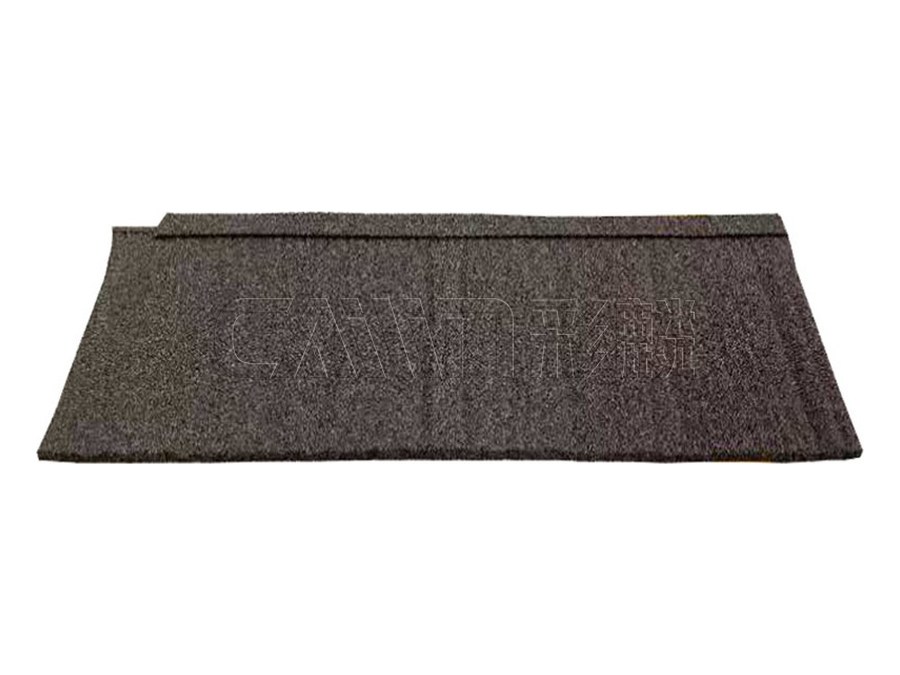

Shake Pro Weathered Grey

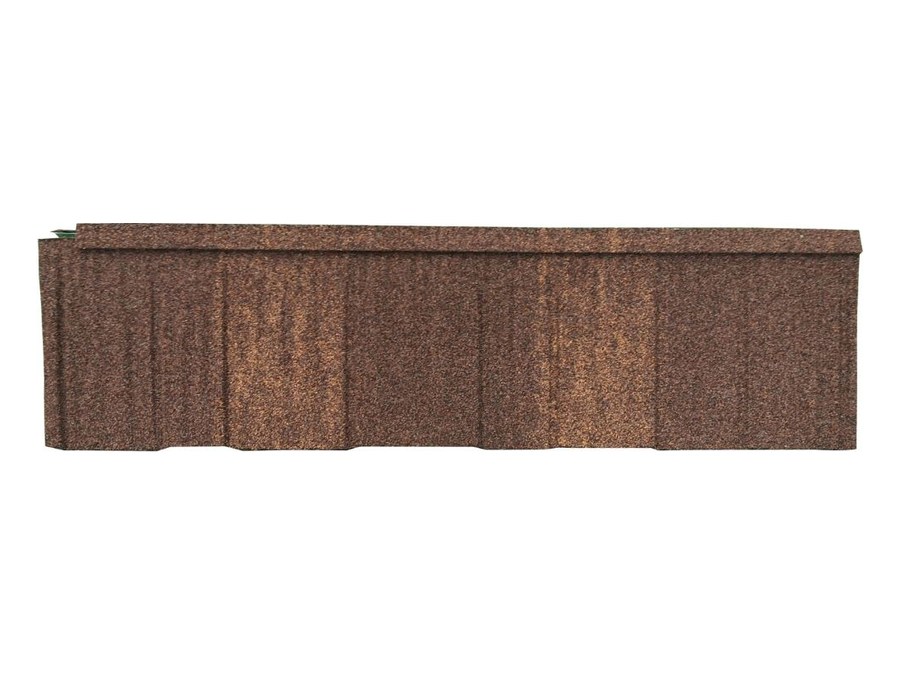

Shake Pro Rust Brown

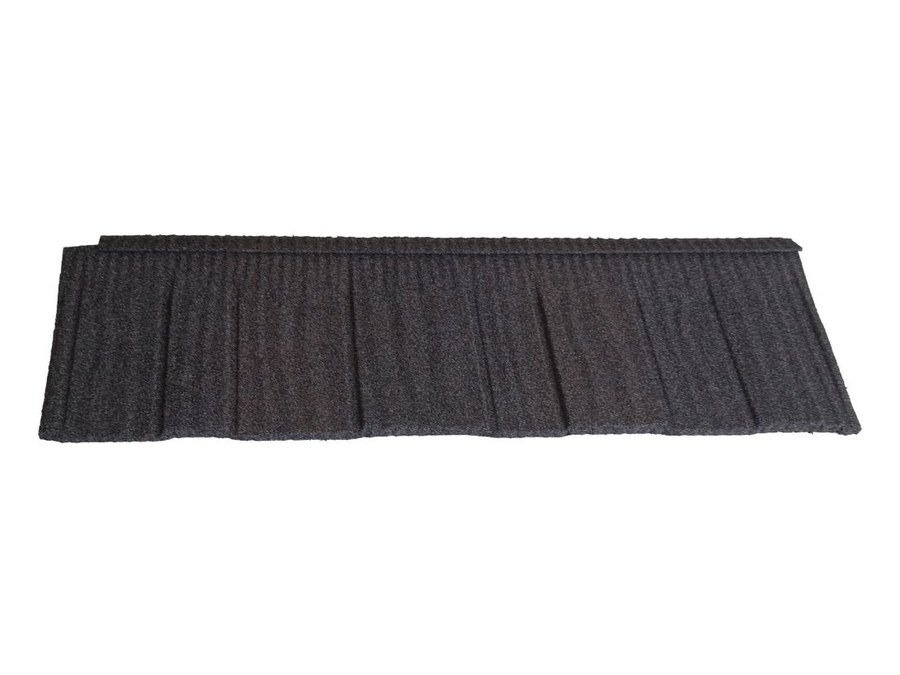

Shake Pro Charcoal

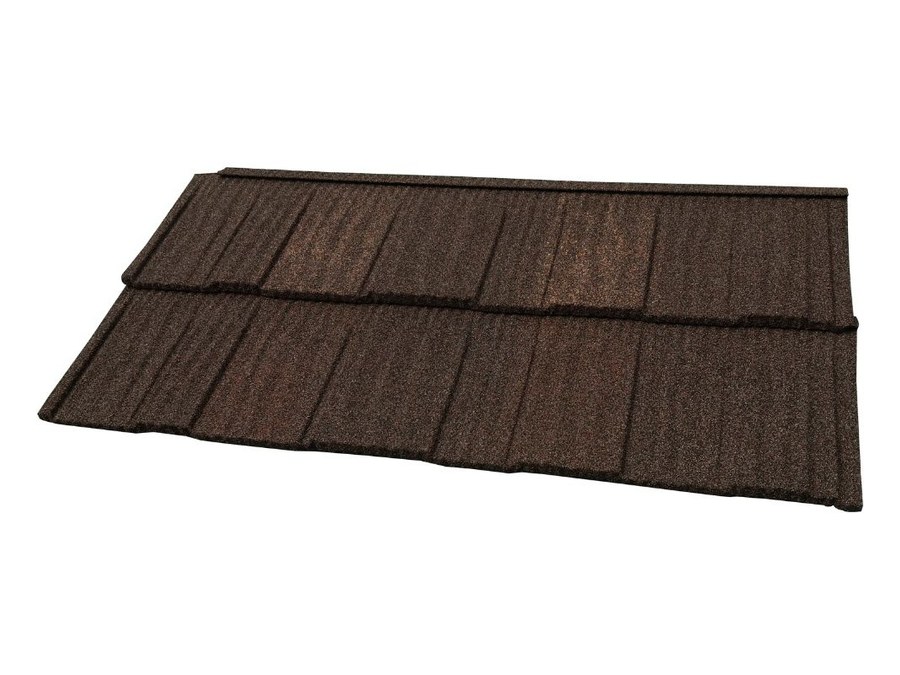

Shake Pro Dark Brown

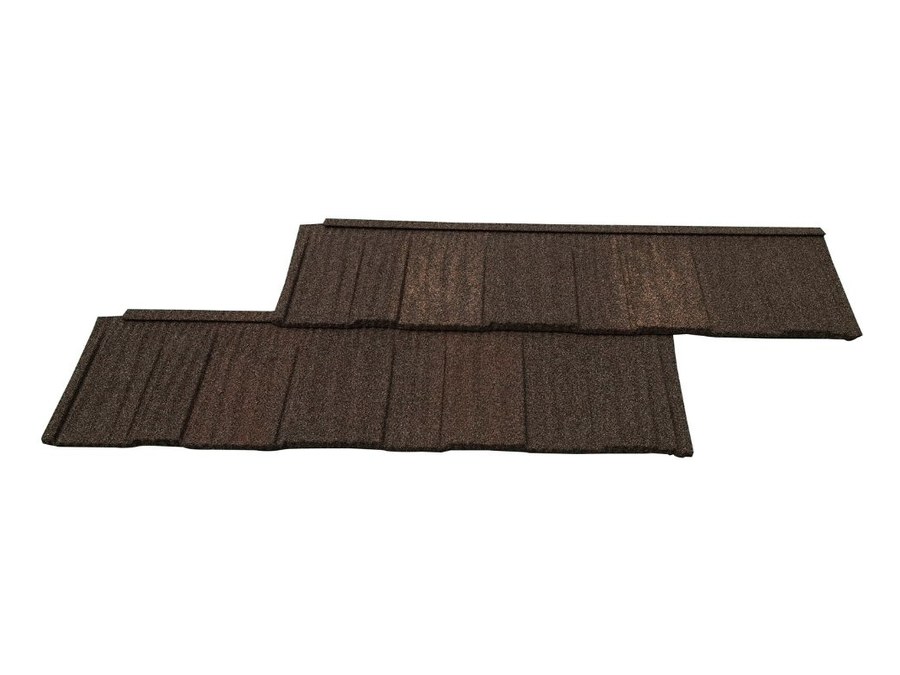

Shake Pro Chestnut Brown

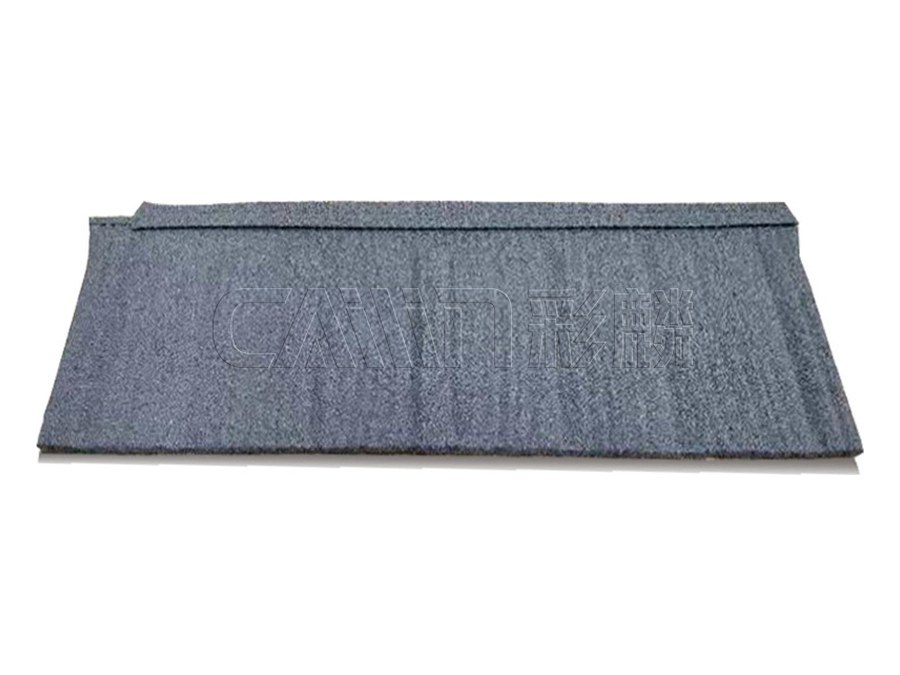

Shake Pro Slate Blue
- Features & Benefits
- Installation Video
- Technical Documents
FIRE RESISTANT METAL ROOF TILES
The steel core and mineral stone coating will not feed a flame, so the assembly keeps its fire rating on homes and commercial buildings.
WIND RESISTANT METAL ROOFING
Concealed clips and an interlocking side lap leave nothing for wind to grab, which is why the system holds in hurricane zones.
LIGHTWEIGHT METAL ROOF TILES
A Shake Pro tile weighs a fraction of concrete or clay, so the roof can overlay existing asphalt shingles without stripping the old covering.
WATERPROOF METAL ROOF TILES
The interlock closes every course mechanically and the head lap sheds driving rain, keeping the deck dry through tropical downpours.
CORROSION & UV RESISTANT
Galvalume steel resists salt air at the coast, while the natural stone granules block ultraviolet light so the colour does not chalk or fade.
ENERGY EFFICIENT, LONG LIFESPAN
The stone surface reflects heat and the ventilated profile lowers attic temperature, and the whole system carries a 50-year warranty.
FAST INTERLOCKING INSTALLATION
No exposed screws and a siding-style interlock let two installers run a full elevation quickly, with far fewer penetrations to seal.
Stone Coated Metal Roof Panel Components
- Overglaze – semi-gloss finish; added protection
- Stone Granules – color; UV resistance; coverage
- Basecoat – adhesion; UV protection; color blended
- Acrylic Primer – priming system; enhances adhesion
- Aluminum-Zinc Alloy Coating – prevents corrosion; protection
- Steel – 0.33mm to 0.55mm thickness; load-bearing; flexible
- Aluminum-Zinc Alloy Coating – prevents corrosion; protection
- Acrylic Primer – priming system; enhances adhesion
In general, there are 3 main parts of raw material contents:
- ① Stone Chips ( Beautiful look, effective heat / UV resistant, noise reduction, anti-slip and etc features)
- ② Galvalume Steel Plate ( Eco-friendly and recyclable material, strong, light-weight, anti-corrosion, waterproof)
- ③ Acrylic Glue ( Premium sealing performance, strong adhesion, anti-algae)
You Can Learn More Professional Knowledge Here
Check the more detailed written installation guides, product manuals available for detailed technical specifications.
