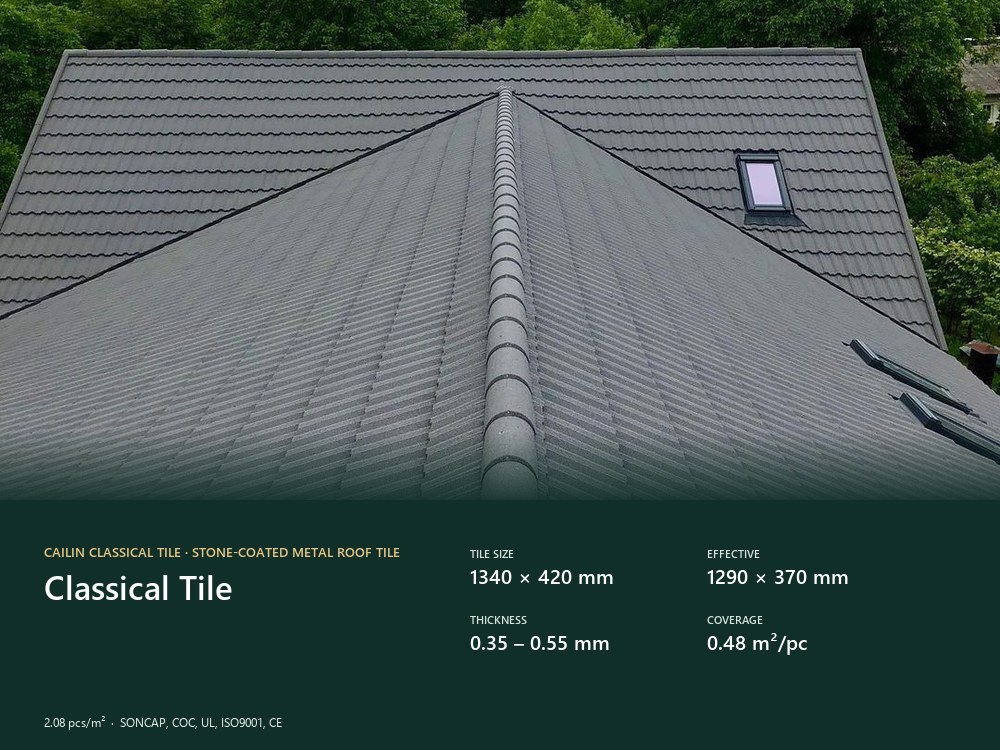

Cailin Classical Roof Tile
Classic stone coated roof tile with the Roman profile
Colors:
Brick

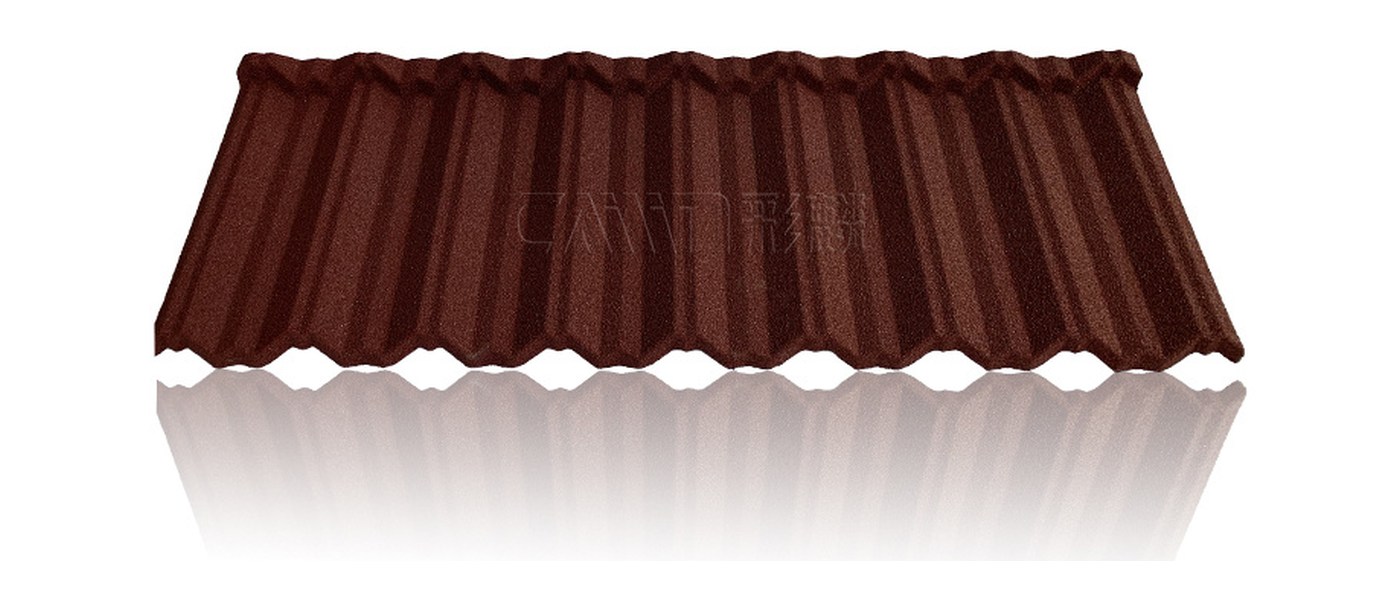

Burgundy

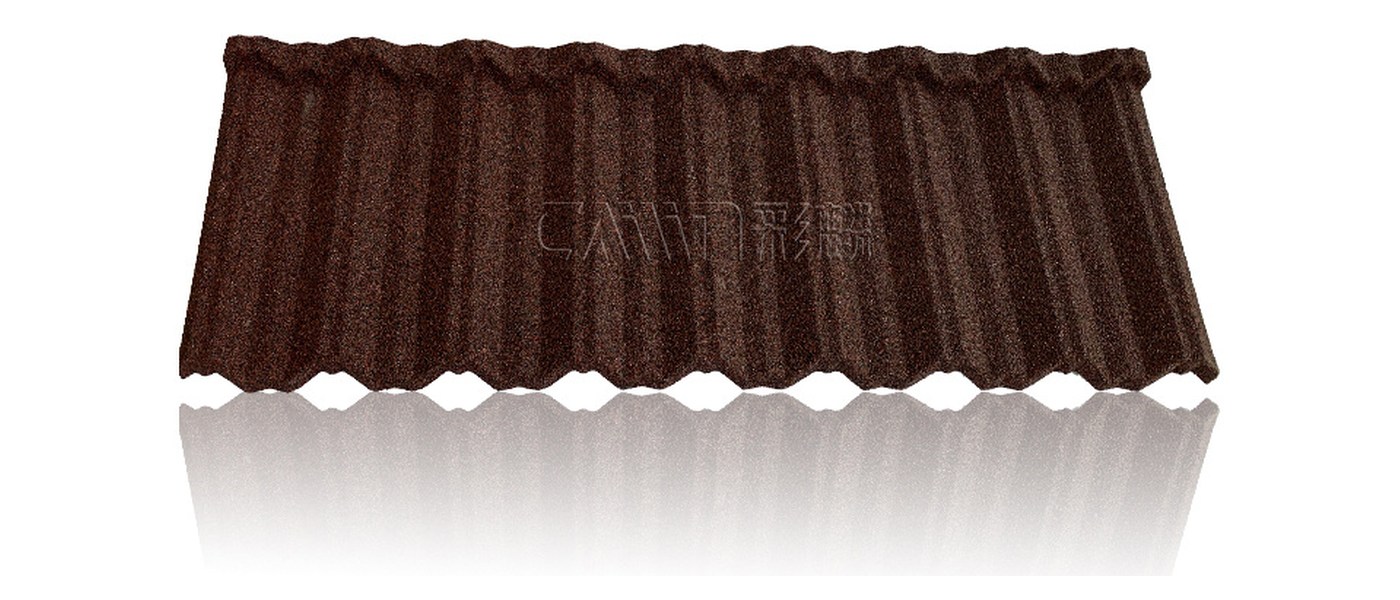

Brown

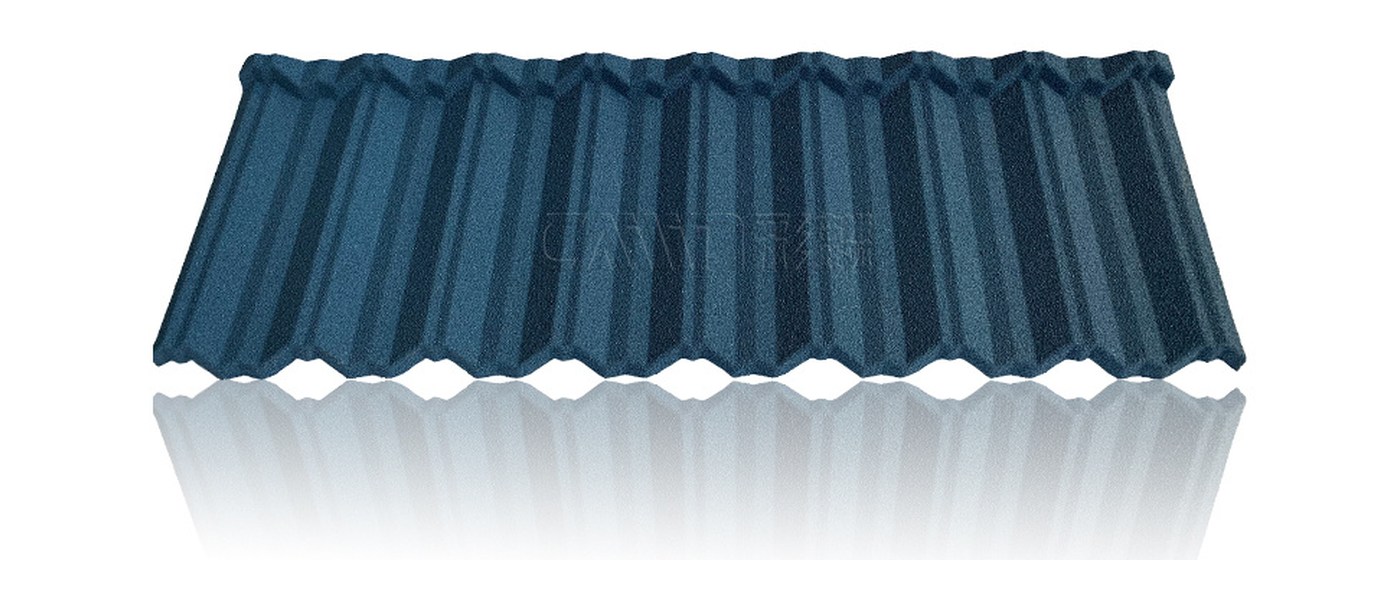

Sky Blue

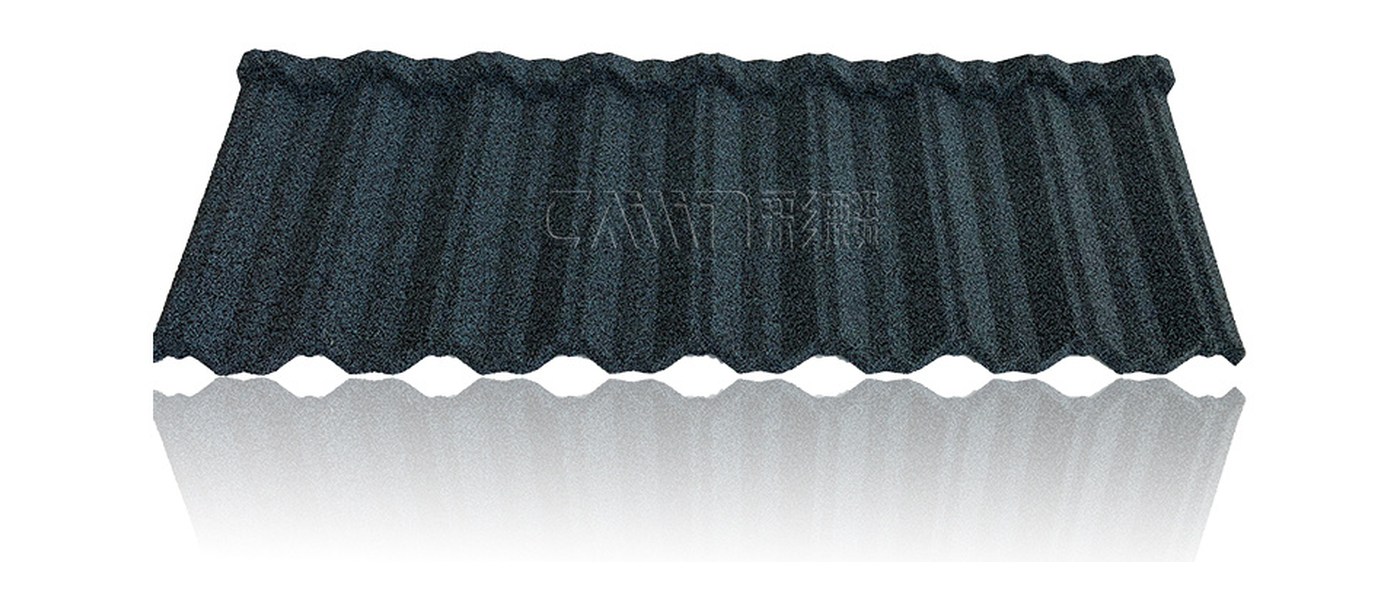

Arctic Blue

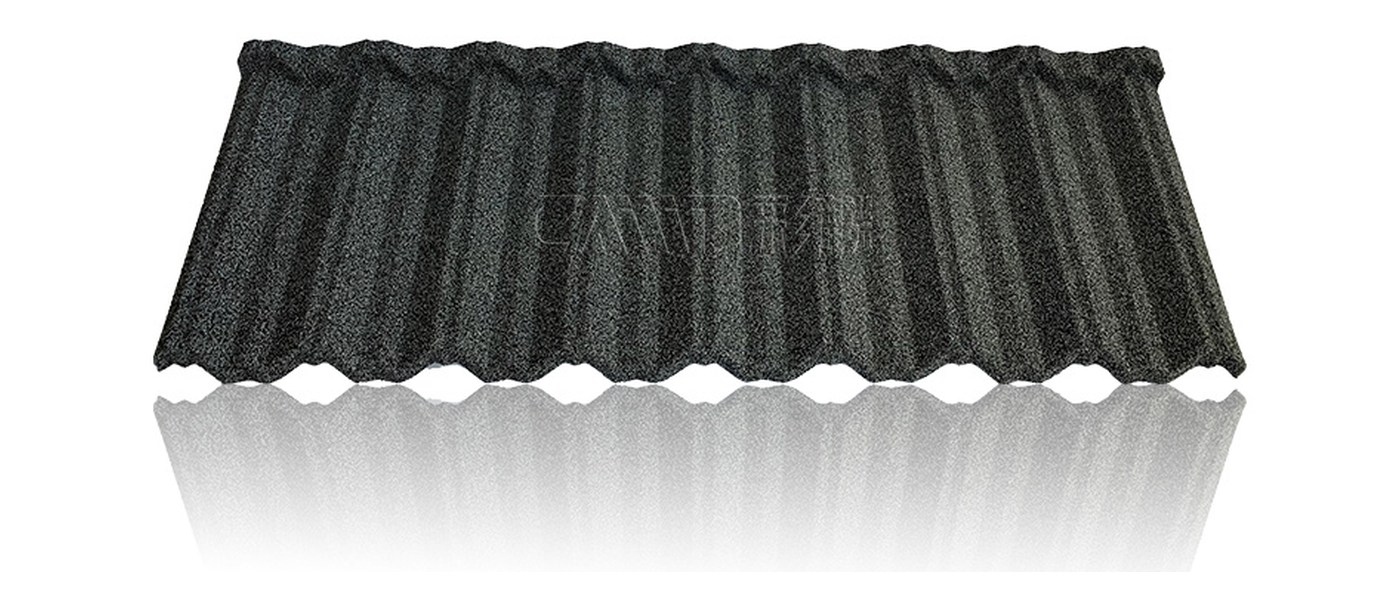

Charcoal

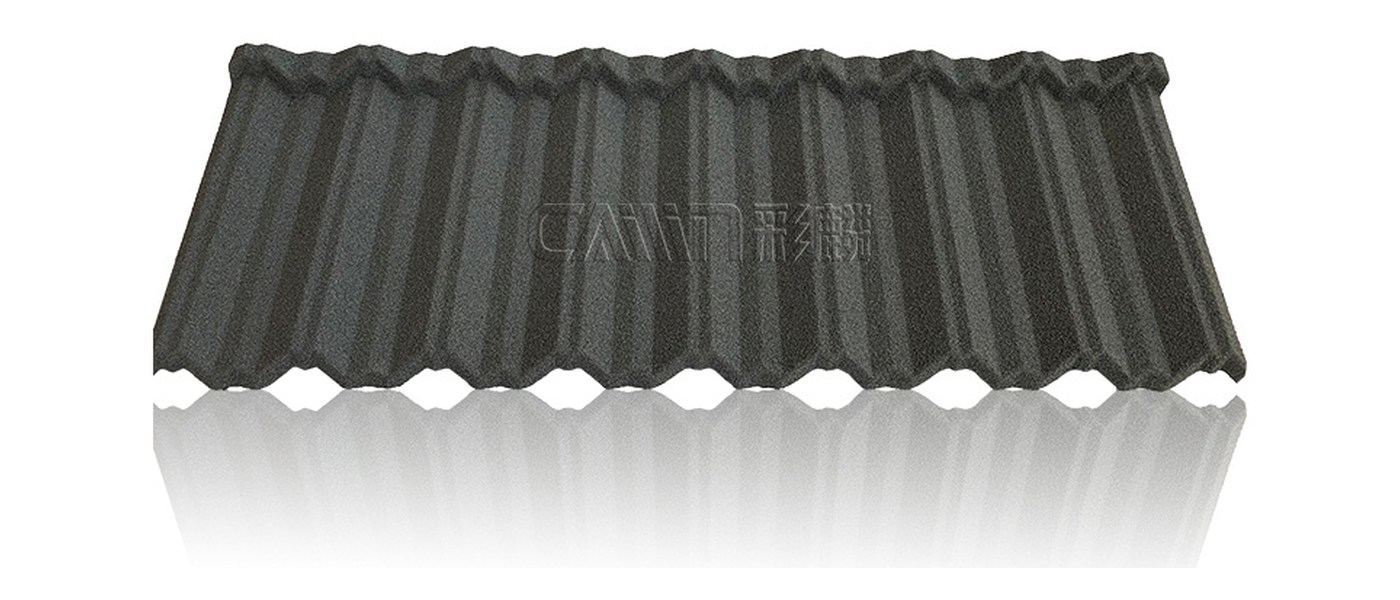

High Ash

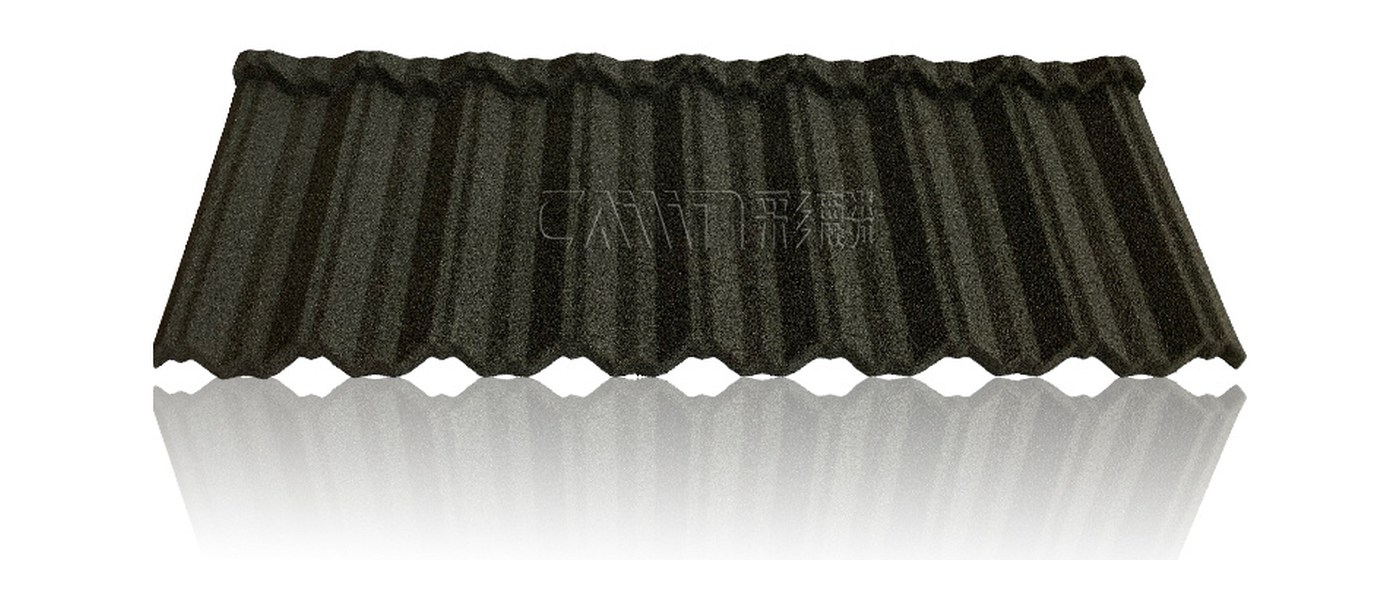

Drake Green
- Features & Benefits
- Installation Video
- Technical Documents
FIRE RESISTANT METAL ROOF TILES:
A steel core under a mineral stone surface will not feed a flame, adding fire safety to residential and commercial buildings.
WIND RESISTANT METAL ROOFING:
Interlocking side laps and a screwed batten line hold the Classical profile tight in high winds, hurricanes and cyclone-prone regions.
LIGHTWEIGHT METAL ROOF TILES:
At roughly one sixth the weight of clay or concrete tile, a Classical roof adds little structural load — practical for re-roofing, two-storey houses and earthquake zones.
WATERPROOF METAL ROOF TILES:
Overlapping courses and sealed laps shed storm rain, and the 1290 × 370 mm effective cover keeps the roof watertight through heavy rain and tropical wet seasons.
CORROSION & UV RESISTANT ROOF TILES:
Galvalume (Aluzinc) steel, a protective base coat and ceramic stone granules resist salt air, acid rain and UV fading — a durable stone coated roof tile for coastal and high-altitude sites.
ENERGY EFFICIENT, LONG LIFESPAN:
The stone surface slows heat transfer into the building and the steel core keeps its strength for decades, with almost no maintenance over a long service life.
FAST INSTALLATION, LOW MAINTENANCE:
Lightweight 1340 × 420 mm tiles and a simple interlocking system shorten installation time, cut labour cost and make re-roofing over an existing deck practical.
Stone Coated Metal Roof Panel Components
- Overglaze – semi-gloss finish; added protection
- Stone Granules – color; UV resistance; coverage
- Basecoat – adhesion; UV protection; color blended
- Acrylic Primer – priming system; enhances adhesion
- Aluminum-Zinc Alloy Coating – prevents corrosion; protection
- Steel – 0.33mm to 0.55mm thickness; load-bearing; flexible
- Aluminum-Zinc Alloy Coating – prevents corrosion; protection
- Acrylic Primer – priming system; enhances adhesion
In general, there are 3 main parts of raw material contents:
- ① Stone Chips ( Beautiful look, effective heat / UV resistant, noise reduction, anti-slip and etc features)
- ② Galvalume Steel Plate ( Eco-friendly and recyclable material, strong, light-weight, anti-corrosion, waterproof)
- ③ Acrylic Glue ( Premium sealing performance, strong adhesion, anti-algae)
You Can Learn More Professional Knowledge Here
Check the more detailed written installation guides, product manuals available for detailed technical specifications.
