Cailin Bond Stone-Coated Roof Tile
Classic bond look, built on stone-coated steel roof tiles.
Colors:
Charcoal

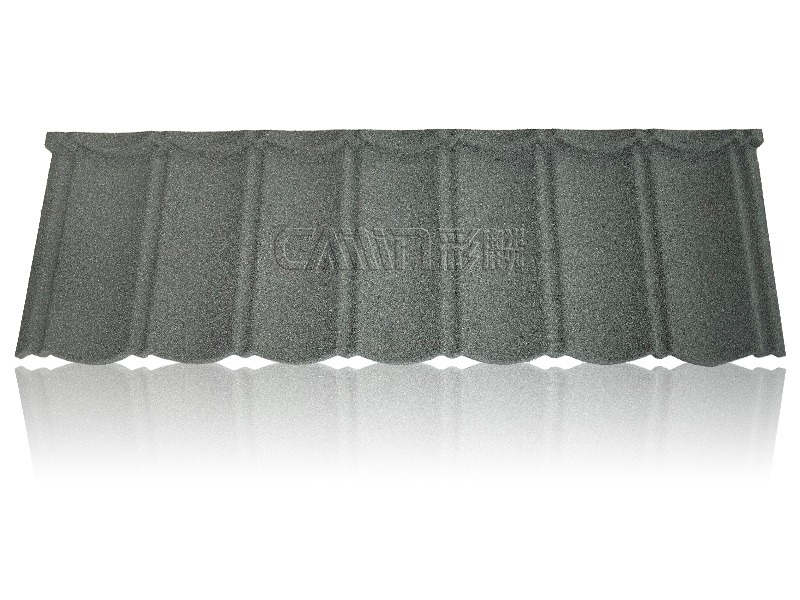

Grey

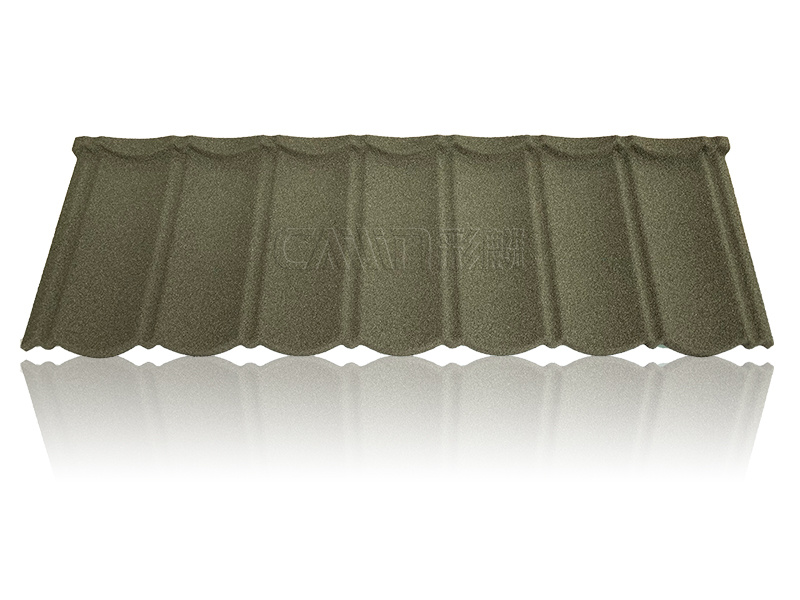

Olive Green

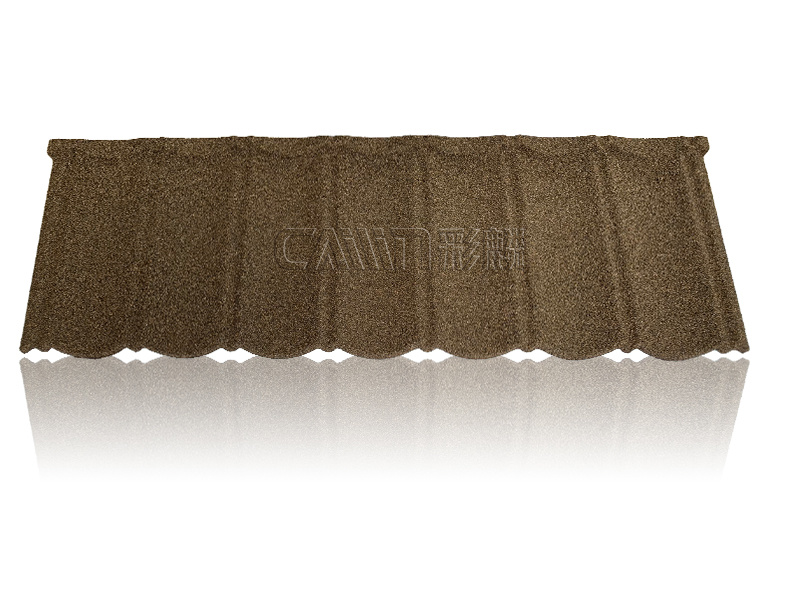

Khaki

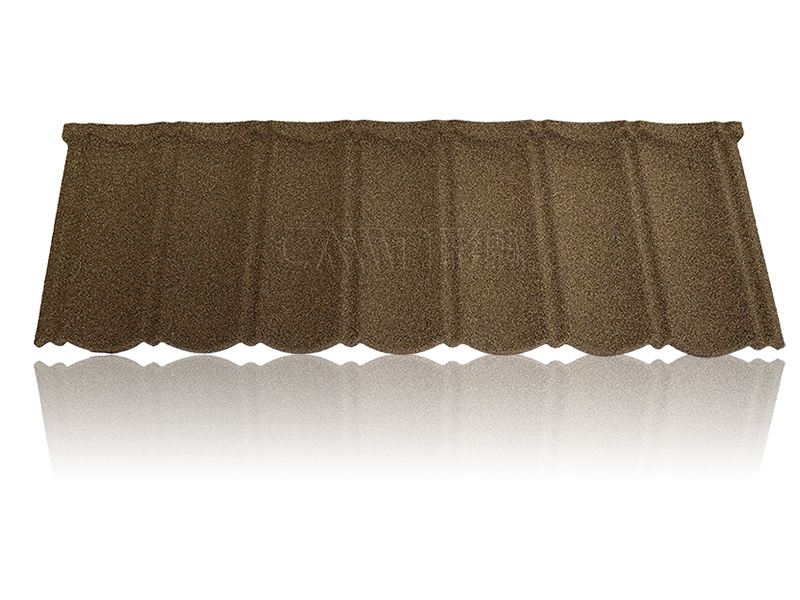

Brown

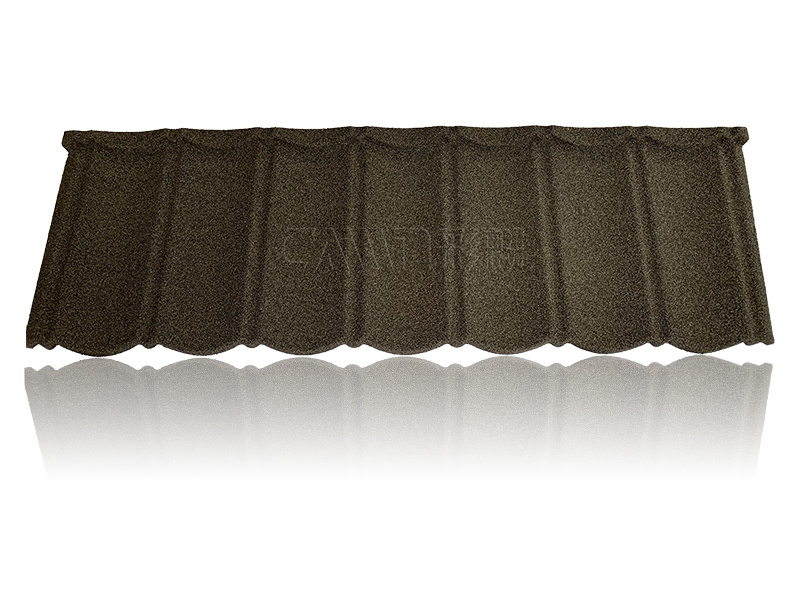

Dark Brown

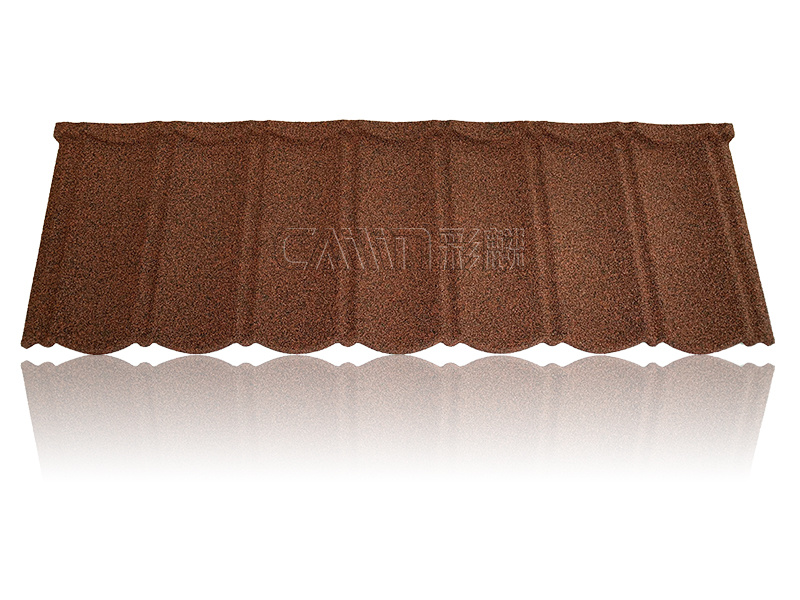

Terracotta

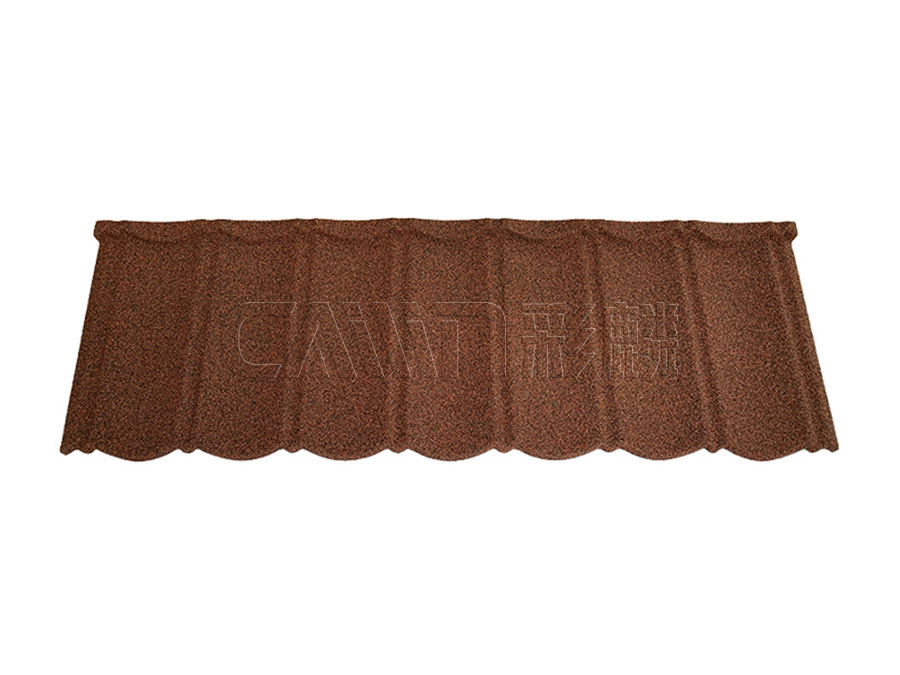

Red Brown
- Features & Benefits
- Installation Video
- Technical Documents
FIRE RESISTANT METAL ROOF TILES:
A non-combustible steel core under a mineral stone surface will not feed a flame, so a Cailin Bond roof adds fire safety to homes, villas and commercial buildings.
WIND RESISTANT METAL ROOFING:
Concealed clips and interlocking side laps tie the panels to the batten line, so a Bond metal roof holds tight in high winds and hurricane-prone coastal regions.
LIGHTWEIGHT METAL ROOF TILES:
About one-sixth the weight of clay or concrete tiles, Bond panels reduce dead load on the structure — practical for earthquake zones, re-roofing and multi-storey buildings.
WATERPROOF METAL ROOF TILES:
The pan-and-scallop profile overlaps and drains at every lap, keeping the roof watertight through storm rain and tropical downpours.
CORROSION & UV RESISTANT:
Galvalume (Aluzinc) steel, primer and ceramic stone granules resist salt air, acid rain and UV fading — a durable stone coated roof tile for coastal and high-altitude projects.
ENERGY EFFICIENT, LONG LIFESPAN:
The stone surface slows heat transfer into the roof space and the steel core holds its strength for decades with minimal upkeep — a low-maintenance tile with a long service life.
FAST INTERLOCKING INSTALLATION:
Pre-formed interlocking panels cut laying time and labour cost, and their low weight makes re-roofing over an existing deck straightforward.
Stone Coated Metal Roof Panel Components
- Overglaze – semi-gloss finish; added protection
- Stone Granules – color; UV resistance; coverage
- Basecoat – adhesion; UV protection; color blended
- Acrylic Primer – priming system; enhances adhesion
- Aluminum-Zinc Alloy Coating – prevents corrosion; protection
- Steel – 0.33mm to 0.55mm thickness; load-bearing; flexible
- Aluminum-Zinc Alloy Coating – prevents corrosion; protection
- Acrylic Primer – priming system; enhances adhesion
In general, there are 3 main parts of raw material contents:
- ① Stone Chips ( Beautiful look, effective heat / UV resistant, noise reduction, anti-slip and etc features)
- ② Galvalume Steel Plate ( Eco-friendly and recyclable material, strong, light-weight, anti-corrosion, waterproof)
- ③ Acrylic Glue ( Premium sealing performance, strong adhesion, anti-algae)
